E-T-A thermal switch + circuit breaker 3Amp.

Single pole switch/thermal circuit breaker with tease-free, trip-free, snap action mechanism.

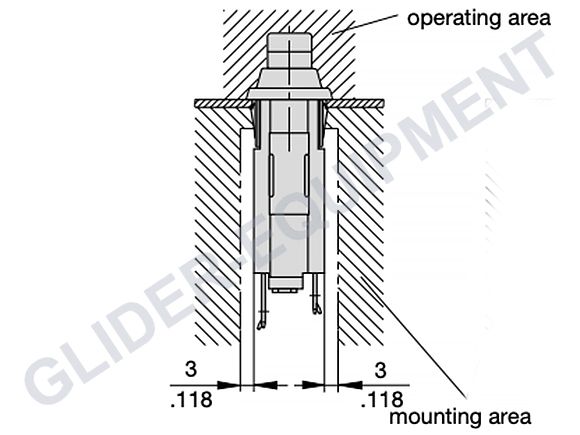

Designed for snap-in panel mounting utilising round hole or industry standard fuse-holder cut-out dimensions.
Featuring an ergonomically styled two colour actuator with white indicator band clearly showing the tripped/OFF position.
Push for trip/off position (white indicator band appears), push again for reset.
For use with terminals 6.3 x 0.8mm.

Originally used by DG/LS Flugzeugbau.


Specifications:
Connection tabs: 6.3 x 0.8mm
Panel thickness range: 0.8mm - 1.6mm
Amp rating: 3A
Max voltage: 50V DC / 250V AC
Weight: 12gram

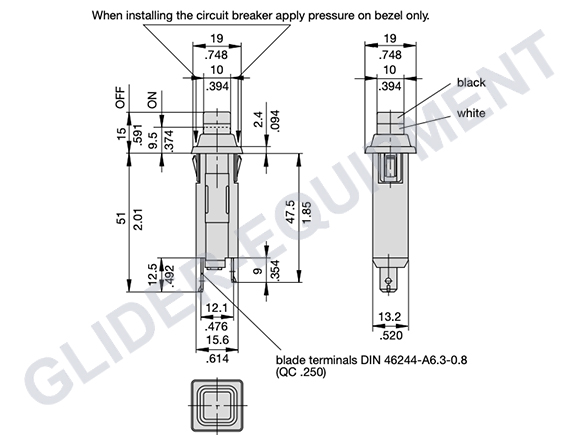

Dimensions:
L= 60mm
W= 19mm
H= 19mm
